SPECIFICATIONS

Battery: 60V 27.5Ah Battery (Lithium 18650 Cells)

Bike Height: 45.3" (115cm)

Bike Weight: ≥88lbs (with Battery) (≥40kg)

Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc

Brand Name: COSWHEEL

Certification: ce

Chain: 7-speed Anti-rust, 1/2" * 3/32"

Charger: 60V5A Charger

Charging Time: 3.5-8.0 Hours

Controller: 60V 35A

Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate

Display: Easy Read LCD Display

Energy: 1650Wh

Folded: No

Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy

Front Light: Classic Angel Eye Headlight, 120 LUX

Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel

Handlebar Width: 26.4" (67cm)

Handlebars: Sand Black 31.8*660

Max Speed: >50km/h

Maximum Load: 330lbs (150kg)

Model Number: CT20S

Motor: Brushless,60V Peak 2000W (Rated 1500W) Brushless Rear Hub Motor 120N.m

Origin: Mainland China

Overall Size: 70.9" * 26.4" *45.3" (180*67*115cm)

Package Size: 59.4" * 14.2" * 35.4" (151*36*90cm)

Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2

Pedal Assist: 5 Levels

Power Source: Lithium Battery

Power Supply: Lithium Battery

Range: 55+miles (88km) in Class-2 throttle-only mode (pure electricity); 100+miles (161km) in Class-1 PAS (pedal assist)

Rated Passenger Capacity: Two Seat

Rear Derailleur: Shimano 7-Speed

Rear Light: LED

Rear Suspension: 180mm Travel

Safe Load: 265lbs (120kg)

Seat Height: 33.4" (85cm)

Sensors: Speed Sensor

Style: Standard Type

Suitable Height: 5'1" - 6'5"

Throttle: Thumb Throttle (New)

Tires: Off-road Tire 20" * 5.0" IA-2149 with AV+Lining

Top Speed: Class 2/3, 28+ Mph (65Km/h)

Wattage: > 500w

Wheel Size: 20“

Wheelbase: 45.3" (115cm)

Our Advantages

1. Coswheel was established in 2015, focusing on developing high-quality and high-performance electric self-propelled vehicles Having the most experienced and top-notch electric bicycle designers, all models are independently designed and have design expertise.

2. We have a complete research and development, manufacturing, and sales system, providing a large number of orders to customers worldwide and gaining unanimous recognition and favor. Customizable products can be tailored to customer needs.

3. The main goal is to provide excellent cycling experience for riders, whether you are commuting, exploring, or RV in the city Travel or mountain sports. Advocate for a low-carbon lifestyle and create a cleaner and greener.Follow our store, and enjoy the best service and prices.

Overseas warehouse

1. European inventory: takes about 3-10 days arrive.

2. USA inventory: takes about 3-7 days arrive.

Packing list：

Electric bicycle*1

Battery *1

Multi-function tool*1

Charger*1

Pedal*2

Gift:Mudguard*2

Specifications:

CT20S

Top Speed: Class 2/3, 65Km/h; Off-road Mode +++(60V)

Range:55+miles (88km) in Class-2 throttle-only mode (pure electricity);100+miles (161km) in Class-1PAS (pedalassist)

Motor: 60V Peak 2000W (Rated 1500W) Brushless Rear Hub Motor 120N.m

Battery: 60V 27.5Ah Battery (Lithium 18650 Cells)

Energy:1650Wh

Front Suspension:20" Shoulder Shock Absorbing,80mm Travel

Rear Suspension:180mm Travel

Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc

Tires: Off-road Tire 20"* 5.0" IA-2149 with AV+Lining

Throttle: Grip Twist Throttle (Old) / Thumb Throttle (New)

Charger: 60V5A Charger

Charging Time: 3.5-8.0 Hours

Display: Easy Read LCD Display

Controller: 60V 35A

Front Light: Classic Angel Eye Headlight,120 LUX

Rear Light: LED

Pedal Assist:3 Levels

Sensors: Speed Sensor

Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy

Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2

Crank: 1/2**3/32"*46T 7-speed ED Tooth Plate

Rear Derailleur:Shimano 7-Speed

Chain: 7-speed Anti-rust, 1/2"*3/32'

Handlebars: Sand Black 31.8*660

Suitable Height:5'1" - 6'5"

Seat Height: 33.4"(85cm)

Bike Height:45.3"(115cm)

Wheelbase: 45.3"(115cm)

Handlebar Width: 26.4"(67cm)

Bike Weight: ≥88lbs (with Battery) (≥40kg)

Maximum Load: 330lbs (150kg)

Safe Load: 265lbs (120kg)

Overall Size: 70.9" *26.4"*45.3"(180*67*115cm)

Package Size: 59.4"*14.2"*35.4" (151*36*90cm)

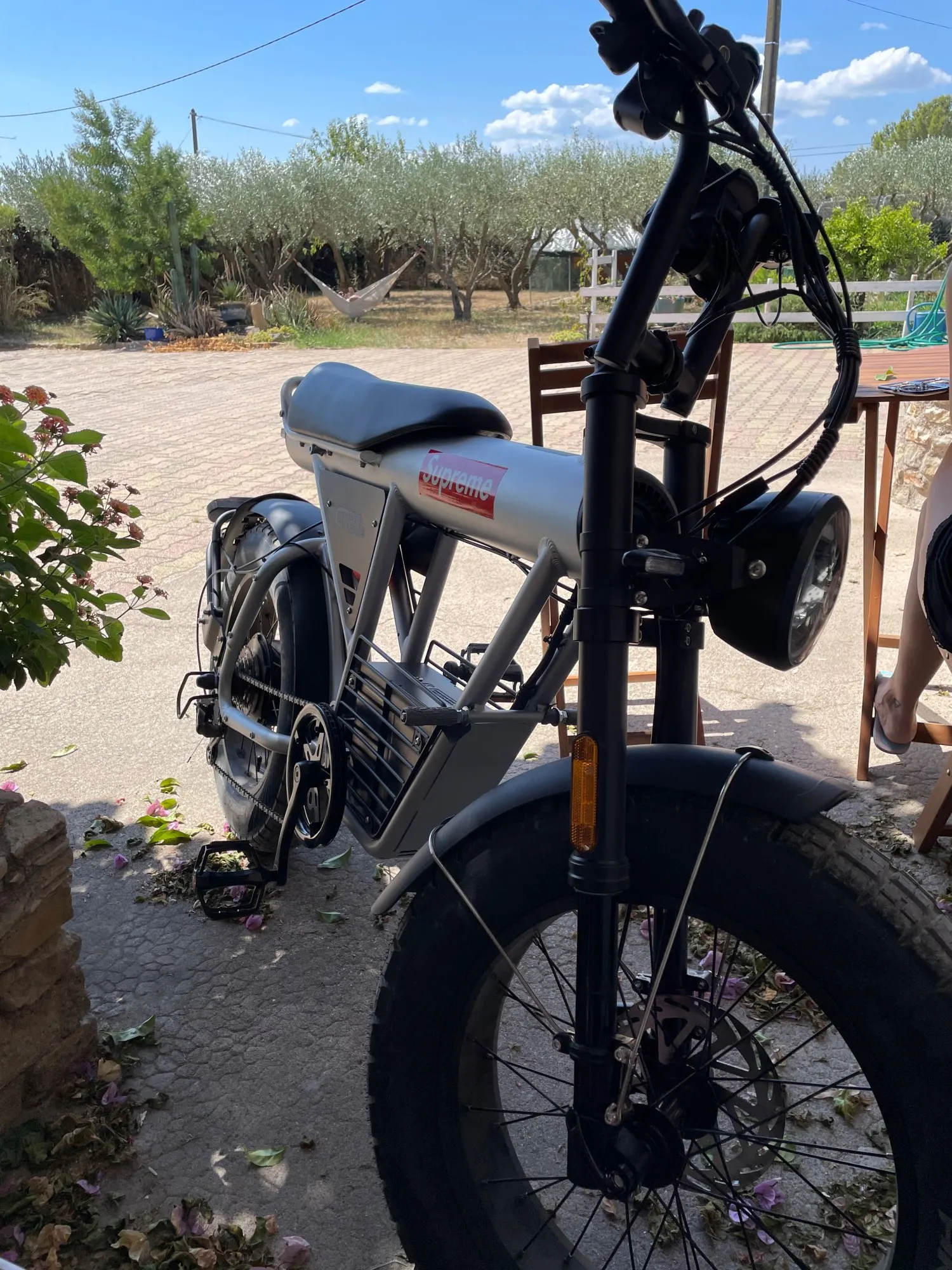

Buyer Show

Quick Tips for Your New E-bike:

1. Confirmation of Receipt: Please confirm receipt in our store after you have received your e-bike.

2. Initial Charging: Please fully charge the e-bike upon receipt for the initial charge. Avoid riding with low battery levels to prevent damage to the battery.

3. Safe Charging: Charge the e-bike correctly, Turn off the e-bike and turn off the battery switch before charging. Plug the charger to the e-bike first, and then to the power socket. Use only the original charger provided. Once charging is complete, disconnect the power socket first, and then disconnect the e-bike.

4. Riding Preparation: Before riding halo knight, inspect and securely tighten all screws, ensuring the safety lock is engaged. Initially, use the low gear to acclimate to riding the e-bike, and only shift to higher gears once you're familiar with all functions. Avoid high speeds when not accustomed to the bike's functions to prevent loss of control and potential injury.

5.Customer Service: If you have any questions about ebike, please contact our customer service and we will help you solve the problem

6.EU: At present, European customers have not reported any regulatory issues after riding. We have CE and COC certificates. The speed of bikes shipped to Europe will be limited to 25km/h when they leave the factory. After receiving the bike, you can contact us for guidance on lifting the speed limit. We can also send you a 250W logo to be affixed to the motor in accordance with European regulations.

Questions & Answers:

Q:Is there any risk of paying customs to ship to European Union countries?

A: No, you don't need to pay extra fees for it, the price on the page is the final price.

Q: Where is the bike shipped from? And how many days can I get the bike after I place the order?

A: Our e-bikes are shipped from warehouses in Europe and will be shipped out in 1-2 working days after you place the order. You can receive the ebike with 3-7 working days

Q: Is the battery removable?

A: Yes. The battery is removable and can be charged on or off the bike. You can lock it on your bike with the key for high security.

Q: Can I purchase an extra battery?
A: Yes, you can buy an extra battery from contact customer support.
